Commercial Potable Water System
Centralized Drinking Water Production and Distribution Solutions for Commercial Facilities
A Commercial Potable Water System is a centralized drinking water solution designed to provide safe and reliable drinking water for schools, hospitals, hotels, factories, office campuses, commercial buildings, and public facilities.
The system treats raw water through multiple purification stages to remove suspended solids, bacteria, viruses, heavy metals, organic contaminants, odors, and other impurities, ensuring compliance with local drinking water regulations and World Health Organization (WHO) drinking water guidelines.
Unlike decentralized water purification devices, a commercial potable water system adopts a centralized treatment, storage, and distribution approach, enabling stable long-term water supply for large numbers of users while reducing operational and maintenance costs.
Depending on water quality and project requirements, the system can integrate filtration, ultrafiltration (UF), reverse osmosis (RO), disinfection, and intelligent control technologies to provide safe, reliable, and sustainable drinking water.
What is Commercial Potable Water System
The Commercial Potable Water System is a next-generation purification solution specifically designed to meet water supply demands in schools, hospitals, office buildings, commercial complexes, industrial parks, and public service settings.
The system employs an integrated process combining “multi-stage pretreatment + precision filtration + RO reverse osmosis/ultrafiltration + disinfection and sterilization + intelligent monitoring” seamlessly integrating raw water purification, constant-pressure water supply, water quality assurance, and a smart operation and maintenance system to achieve comprehensive purification from source water to high-quality drinking water.
The entire system adopts a modular, integrated design and features:
- Quick Deployment
- Ready-to-use
- Smart Operation
- Energy-efficient and low in consumption
- Long-term, stable water supply
It meets the high standards of modern public drinking water systems for safety, stability, health benefits, and smart functionality.
Commercial Potable Water System Functions
The device integrates purification, sterilization, storage/supply, and intelligent management functions into a single unit:
01
Raw Water Purification Function
Efficient Removal:
- Sediment and suspended particles
- Colloids and organic pollutants
- heavy metal ion
- Residual chlorine and odor
- Bacteria, viruses, and microorganisms
02
Deep Desalination and Purification
Utilizing RO reverse osmosis or ultrafiltration technology, the following objectives are achieved:
- TDS reduce
- water demineralization
- High-quality drinking water output
03
Disinfection and Sterilization Function
ensemble ：
- UV ultraviolet disinfection
- Ozone sterilization
- Cyclic Antibacterial System
Ensure the safety of drinking water at terminals.
04
Constant Pressure Stable Water Supply Function
Intelligent variable-frequency constant-voltage control, achieving:
- Multi-point stable water supply
- automatic pressure control
- Stable water output during peak usage periods
05
Smart Operations Management
system support ：
- Online Water Quality Monitoring
- Remote Operation and Maintenance Management
- Automatic Alarm Protection
- View Mobile/Cloud Data
Commercial Potable Water System Technical Details

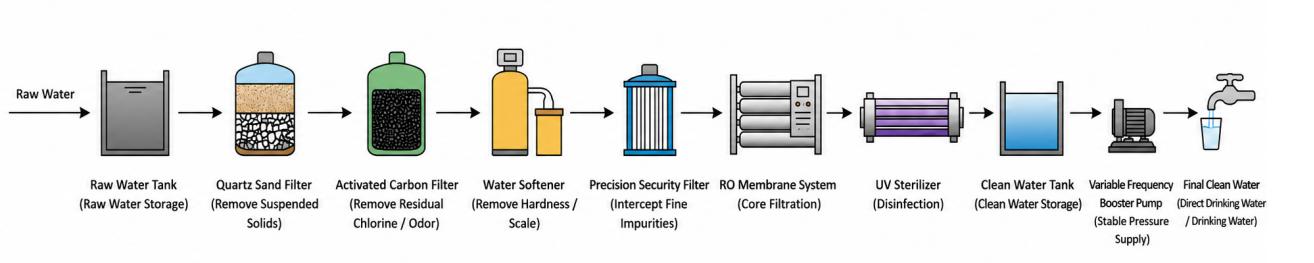

Explanation of the Technical Process Principles

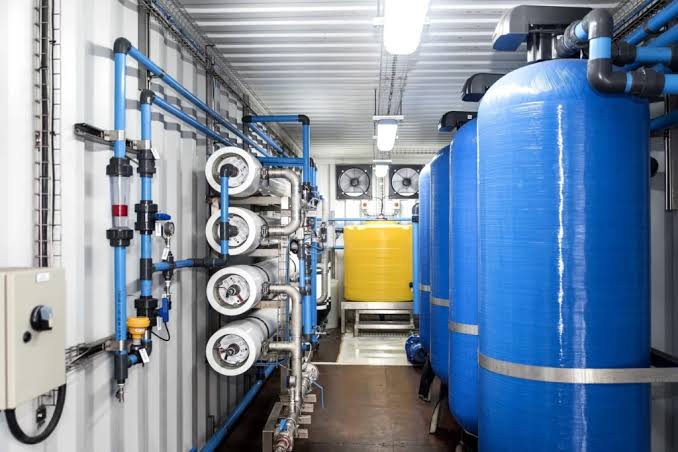

(1) Pre-treatment stage
The raw water first enters the pretreatment system:
Quartz sand filter: For removal silt, rust, Large particulate suspended solids, reduce the load on the backend membrane system.
Carbon filter: Removal via high adsorption performance:residual chlorine, organics, Odor and chromaticity. Effectively protect the RO membrane.
Softening/anti-scaling system: Reduce water content, calcium and magnesium, Water Hardness. Prevents scaling on RO membranes.

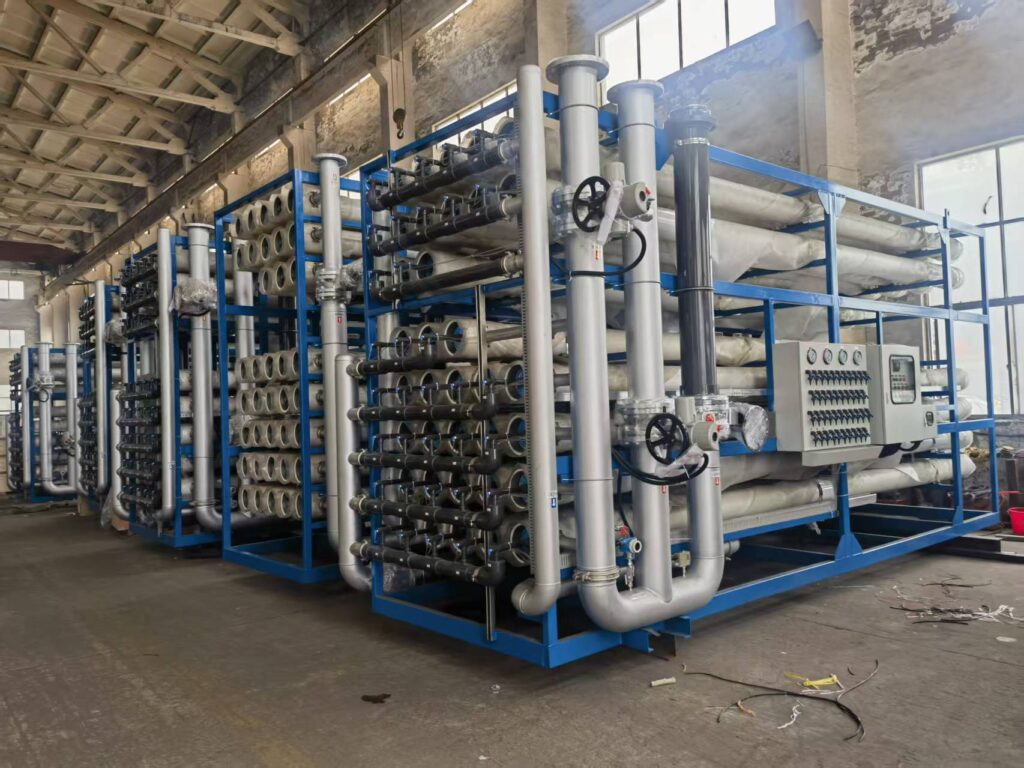

(2) RO Reverse Osmosis Purification Stage (Core)
Under high-pressure conditions, water molecules pass through the RO membrane while heavy metal,bacterial virus, dissolved salts, organic contaminant
Effectively retained for high-quality purification.
The RO system achieves a desalination rate of 95%–99%.
(3) Disinfection and Water Supply Stage
After entering the pure water tank, the purified water undergoes the following processes: UV ultraviolet rays, Ozone sterilization. Implement secondary security measures.
The water is then delivered to the final drinking points via a variable-frequency constant-pressure system.
The device supports modular and flexible configuration:
Specification of Equipment | Handling Capacity |
Parvocellular System | 0.5–5 m³/h |
Medium-sized System | 5–20 m³/h |
Large Scale System | 20–100 m³/h |
Customized System | ≥100 m³/h |
Modular design with detachable components
- factory-based prefabricated production
- Quick Installation on Site
- Ready-to-use
High-quality RO (Reverse Osmosis) purification technology
- High desalination rate
- high stability
- Long-life membrane system
Smart Control Platform
- PLC automata
- Online Monitoring
- Cloud Platform Remote Maintenance
Low-energy consumption operation
- Energy-saving high-pressure pump
- Intelligent Frequency Conversion Control
- Automatic rinsing system with water-saving design
Food-grade sanitary design
- SUS304/316 stainless steel
- Health-grade piping
- Blind-spot-free structural design
Public Service Applications
- Hospitals
- Schools
- Government Buildings
- Airports
- Railway Stations
- Commercial Buildings
- Hotels & Resorts
Industrial Applications
- Manufacturing Plants、
- Industrial Parks、
- Mining Sites、
- Power Plants、
- Oil & Gas Facilities、
- Construction Camps
Special Scenarios
- Remote Communities
- Rural Water Supply
- Military Bases
- Emergency Relief
- Refugee Camps
- Islands & Offshore Facilities
Built around the core principles of safe drinking water, intelligent management, stable operation, and rapid deployment, this packaged system combines modular integration with smart control technology to deliver a high-quality, reliable, all-in-one direct drinking water solution for modern public and commercial applications.
